Vehicle-to-Vehicle Communication using Free Space Optics

Overview

Radio frequency (RF) bands utilized for vehicular communications face increasing spectrum congestion and susceptibility to electromagnetic interference. Free-Space Optics (FSO) offers an alternative, highly directional line-of-sight communication medium with high data integrity.

In this project, developed for ECE4005 - Optical Communication Networks at Vellore Institute of Technology, I designed and prototyped an end-to-end Free-Space Optical Vehicle-to-Vehicle (V2V) telemetry system from scratch, complete with custom transceivers, a physical-layer framing protocol, and error-recovery mechanisms.


System Architecture

System Block Diagram Figure 1: Transmitter and receiver hardware architecture for optical vehicle telemetry.


Hardware Implementation

1. Transmitter Circuit

Input telemetry (braking status, lane-change indicators, speed) is collected from vehicle control interfaces, framed by an embedded microcontroller, and modulated onto a collimated laser diode transmitter.

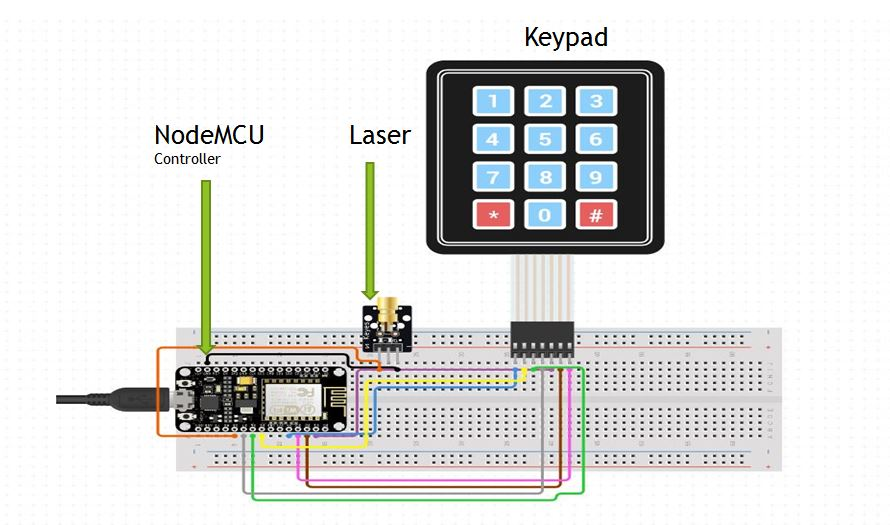

Transmitter Circuit Figure 2: Laser transmitter circuit schematic and driver stage.

2. Receiver Circuit

A high-sensitivity photodetector array receives the modulated optical signal, applies thresholding to resolve binary pulses, and passes the bitstream to the receiver microcontroller for frame synchronization and telemetry decoding.

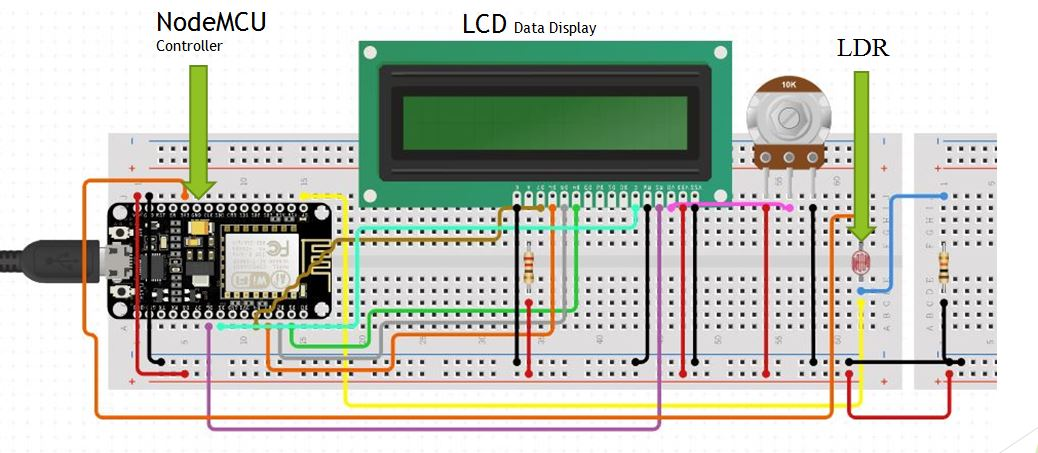

Receiver Circuit Figure 3: Optical receiver circuit schematic with signal conditioning.


Protocol Design & Synchronization

Frame Structure

A custom 17-bit frame was designed to balance throughput with error recovery over optical channels:

  • Header: 4 bits (1011)
  • Data Payload: 9 bits:
    • Lane change indicator: 1 bit (Left / Right)
    • Braking alert: 1 bit (Active / Inactive)
    • Vehicle speed: 7 bits (0 – 127 km/h range)
  • Trailer: 4 bits (1010)

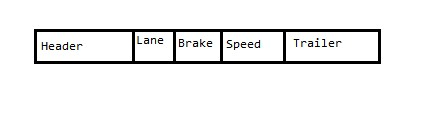

Frame Structure Figure 4: 17-bit optical telemetry packet structure.

Error Recovery & Bit Stuffing

  • Bit Stuffing: Implemented bit-stuffing rules to ensure that reserved header and trailer flag sequences do not appear within the data payload, preventing false synchronization.
  • Stop-and-Wait ARQ: Sender transmits a frame and waits for an optical acknowledgment (ACK). If no ACK is received within a 1.5-second timeout window, the frame is retransmitted. The receiver dynamically resynchronizes to the next incoming frame using header flag detection if intermediate bits are dropped.

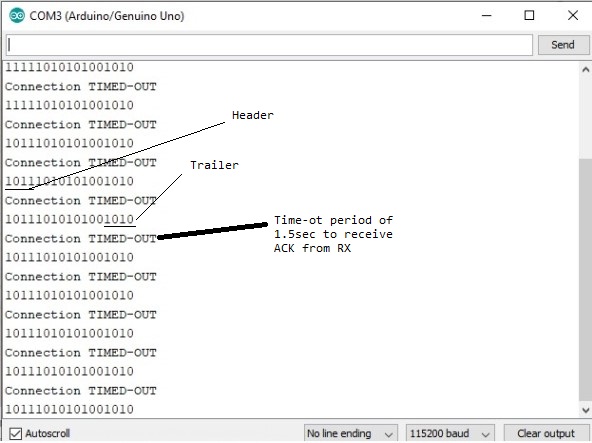

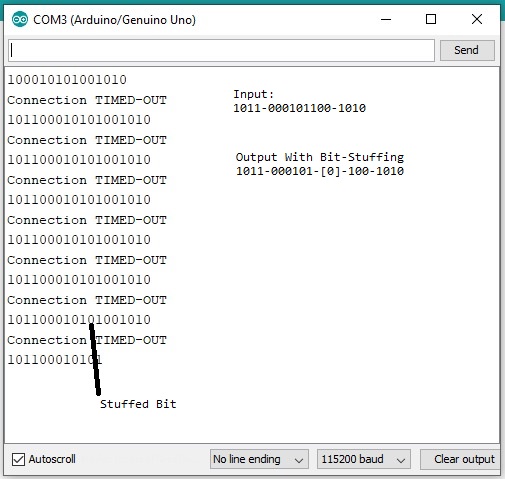

Bit Stuffing and Output Waveforms Figure 5: Oscilloscope traces showing transmitted and received optical pulse streams under synchronization.
